A Detailed Guide for Removing Insulation Clips from the Dodge Ram Hood
Truck fans love the Dodge Ram because of its legendary performance and durability. To keep it operating properly, though, it needs maintenance much like any other car. Removing the hood insulation is one such task that is frequently required for repairs, replacements, or alterations. The hood insulation shields the hood from heat and aids in reducing engine noise. It requires handling insulation clips, which can be challenging if you’re not experienced with the procedure. The thorough instructions in this tutorial will help you remove the Dodge Ram’s hood insulation clips safely and effectively. So, you must read this to know all about how to remove hood insulation clips and how to remove dodge ram hood insulation clips along with information about how to remove hood insulation clips ram 1500
According to research, having a Dodge Ram is a source of pride for many people. These sturdy trucks are built with functionality, longevity, as well as appearance in mind. But to keep your car in good condition, you need to do routine maintenance, which includes things like taking off the hood insulation clips that might not be immediately apparent. Whether you need to remove the insulation for engine work or are simply replacing it, this comprehensive guide will take you step-by-step through the entire process. We hope you have read the post, Reefer Trailer Insulation in that post we examine some points about hood insulation, you may click and read the post.
Knowing About Hood Insulation and Clips Hood Insulation:
What Is It Hood Insulation Clips
In your Dodge Ram, hood insulation—also referred to as hood liners or under-hood insulation—serves several functions.
Controlling Heat:
It assists in controlling the temperature beneath the hood, shielding the paint from the heat produced by the engine.
Noise reduction:
It makes the ride calmer by attenuating the noise made by the engine.
Safety from fire:
If there is an engine fire, the insulation can help put out the flames and stop the fire from spreading. Hood Insulation Clip Types Insulation for hoods is fastened with specialized clips, usually composed of metal or plastic.
These clips are made to securely hold the insulation in place while making removal simple in case it becomes necessary.
Typical kinds or types of hood insulation clips include of:
The following are the most common and well-known hood insulation clips-

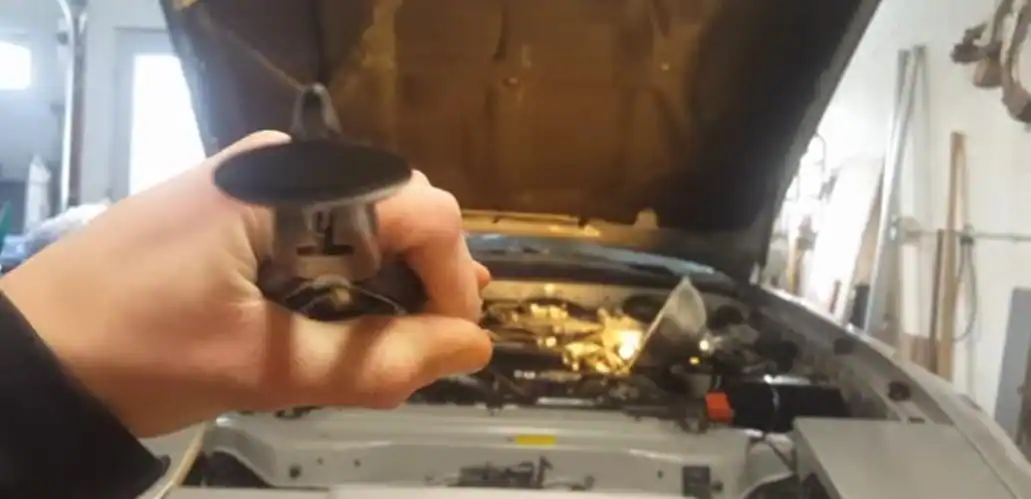

Push-Type Retainers:
These clips extend to hold the insulation in place after being pushed into a hole.
Screw-Type Clips:- how to remove hood insulation clips
To remove these from the mounting holes, a screwdriver is needed.
Rivet-Type Clips:
Harder to remove without a specialised tool, these are more persistent.
Required Equipment and Supplies For Install Clips
To make sure the process runs smoothly and effectively, gather the required supplies and tools before you begin:
Phillips screwdriver with flathead Trim removal instrument
Pliers Replacing the damaged old clips with new ones
gloves for hand protection
Lightwork for eye safety
Why Is Hood Insulation Removed?
Before beginning the removal process, it’s critical to comprehend the following reasons why hood insulation removal may be necessary:
Access to the Engine Bay:
The hood insulation may impede your ability to access certain areas of the engine bay, which you may need for repairs or upgrades.
Replacing Insulation:
Insulation may become damaged or wear out over time, requiring replacement. Customisation: For aesthetic purposes or to add aftermarket components, enthusiasts frequently remove the hood insulation.
Inspection and Maintenance:
Regularly looking beneath, the hood to check for wear or rust can assist detect problems that may need to be fixed.
Safety precausions when you are going to remove the hood insulation clips-
Security precautions are as following which you have need to follow-
Cool the Engine:
To prevent burns or other damage, make sure the engine is totally cool before starting.
Disconnect the Battery:
To avoid unintentional electrical problems, disconnect the battery’s negative connection for increased safety.
How-To Guide: Step-by-Step Removal of Hood Insulation Clips
Step 1: Get ready and preparation
Park Your Car Safely: Make sure the engine is off and cold and that your Dodge Ram is parked on a level area. To keep the hood open, open the hood latch from inside the car and use the prop rod to hold it in place.
Safety first:
To protect yourself from any debris or sharp edges, put on safety gloves and eye protection.
Step 2: Examine the Clips- how to remove hood insulation clips
Determine the kind of hood insulation clips and where they are located. This will assist you in selecting the appropriate removal equipment and methods.
Push-type retainers are used on the majority of Dodge Ram vehicles, however, it’s best to double-verify.
Step 3: Eliminate Push-Type Retainers
1. Find the Clips:
Typically, push-type retainers are placed all the way around the insulation.
2. Use Flathead Screwdriver of Trip Removal Tool:
Make use of a trim removal tool or flathead screwdriver: Slide the tool under the clip’s edge gently.
3. Hold the Pry Up Centre Pin:
Lift the clip’s center pin with caution. By expanding the clip, this pin secures it in position. The clip can be released by lifting the pin.
4. Extract the Clip:
After lifting the center pin, carefully remove the entire clip out of its hole with the trim removal tool. To remove a tough clip, try exerting a little extra pressure or wriggling the tool.
Step 4: Take off Screw-Type Clips- how to remove hood insulation clips
How to Spot Screw-Type Clips These clips are secured using screws, so you’ll need a flathead or Phillips screwdriver. Unscrew the Clips:
To loosen and remove the screws, rotate the screwdriver anticlockwise. The clip ought to be simple to remove after the screw is taken out.
Extract the Clips:
Gently pry the clips out with the trim removal tool if they will not come out after being unscrewed.
Step 5: Remove Rivet-Type Clips
How to Spot Rivet-Type Clips These are less frequent and typically need to be removed using a specialised tool.
Extract the Rivets:
Drill out the rivet’s center with care using a drill bit that is suitable for the job. This will cause the video to play. Extract the Rivet:
Using pliers or a trim removal tool, the rivet should be simple to extract after it has been drilled out.
Step 6: Take the Insulation Out
Now that every clip has been taken off, the hood insulation may be removed. If you intend to use it again, carefully remove it from the hood being careful not to harm it. Look for any missing clips or adhesives that might still be holding the insulation in place if it is stuck.
Advice and Tips for a Smooth Removal Procedure
Take Your Time:
Hurrying can result in insulation damage or broken clips. Proceed deliberately and with patience.
Organize Your Clips:
To keep them organised, when you remove each clip, put it in a container or magnetic tray.
Examine Clips for Reuse:
After removal, examine each clip. Replace any damaged clips with new ones to guarantee that the insulation is put back in place firmly.
Clean the Hood:
Take advantage of the chance to clean the underside of the hood and look for any indications of corrosion or damage after removing the insulation.
Replacing the Hood Insulation
It’s time to put the insulation back in place after doing any necessary maintenance or replacement.
How to do it is as follows:
Step 1; Align or Position the Insulation
First, position the insulation. Reposition the hood insulation to its initial location. Make sure that every mounting hole lines up with the hood’s holes.
Step 2: Place the Clips in or insert the clips
1.Push-Type Retainers: Press down on the centre pin to secure the clip after inserting it into the hole.
2.Screw-Style Clips: Using a screwdriver, position the clip and tighten it into place.
3.Type Clips with Rivets: If rivets are used, place them in the holes and fasten them using a rivet gun.
Step 3: Last Inspection
Check to make sure the insulation is securely in place and that no clips are missing or loose after all of the clips have been replaced. Make sure the hood latches firmly in place before closing it.
How To Remove Dodge Ram Hood Insulation Clips
You can follow these steps for remove dodge ram hood insulation clips-
Shattered clips Solution:- How to remove hood insulation clips
Carefully remove the remaining piece with pliers if a clip breaks during removal. When necessary, replace with fresh clips.
Difficult Clips Solution:
Before attempting removal again, apply a little amount of penetrating oil to difficult clips and let them sit for a few minutes.
Damaged Insulation: You might think about getting a new liner in place of the damaged insulation. This guarantees protection as well as best-in-class performance.
In summary at last we can say,
With a few simple tools and a little perseverance, you can easily remove and reinstall the hood insulation clips on your Dodge Ram. Maintaining the hood insulation properly benefits your car’s overall efficiency and longevity in addition to preserving its appearance and functionality.
If you adhere to this thorough advice, you’ll be well-prepared to take on this assignment with assurance. Any owner of a Dodge Ram should know how to remove and replace hood insulation clips correctly, whether it’s for annual maintenance or a specific problem. Cheers to wrenching!
How To Remove Hood Insulation Clips Ram 1500
Whether you’re an experienced technician or a do-it-yourselfer, you might need to take off your RAM 1500’s hood insulation clips at some point. Although its seeming simplicity, this task calls for a little perseverance and the appropriate equipment to guarantee that it is completed correctly and without harming anything. This thorough guide will walk you through the procedure.
Step 1: Prioritise safety
Park and Cool Down: Make sure the engine is off and your RAM 1500 is parked on a level surface. To prevent burns, wait until the engine has cooled completely before beginning this procedure.
Protective Gear:
To protect yourself from any jagged edges or debris, put on work gloves and safety glasses.
Step 2: Find the Insulation Clips for the Hood
Take off the RAM 1500’s hood. Most of the time, many clips are used to secure the insulation. Take a moment to recognize each of the clips that are securing the insulation.
Step 3: Get Your Equipment Ready
Use either a flathead screwdriver or a trim removal tool. Although a trim removal tool is the best option since it reduces the chance of breaking the insulation or clips, a flathead screwdriver can also function well with careful use.
Step 4: Work to Free the Clips- how to remove hood insulation clips ram 1500
Put the Tool in Place: Insert the screwdriver or trim removal tool beneath the clip’s edge. Gently Pry: To remove the clip from its hole, gently press upward. Use caution when using a screwdriver to avoid damaging the insulation or the clip by using too much force.
Step 5: Get Rid of Unwilling Clips- how to remove hood insulation clips ram 1500
You might need to use pliers to remove clips that are difficult to remove using a screwdriver or trim tool. Hold the clip firmly in place and pull upwards while twisting gently. To avoid shattering the clips or causing damage to the surrounding regions, do not use excessive force.
Step 6: Remove the insulation with caution
After removing each and every clip, gently pull the insulation away from the hood. Take your time to make sure the insulation is not torn by any loose or partially fastened clips.
Step 7: Examine and Put the Clips Away-how to remove hood insulation clips ram 1500
Once removed, examine the clips. If any are broken, think about getting replacements. To prevent losing them, keep the clips in a secure location.
Removing the RAM 1500 hood insulation clips with the correct tools and a little perseverance is simple. Following these instructions, you can quickly and safely remove the insulation clips for cleaning, replacement, or repairs. Always use caution when handling the clips to prevent damage, and take all essential safety measures to keep yourself safe. Cheers to wrenching!
Sum Up The Post, How To Remove Hood Insulation Clips, and How To Remove Hood Insulation Clips Ram 1500
So, for removing hoos insulation clips, with the help of these instructions, you can quickly and safely remove the insulation clips for cleaning, replacement, or repairs. Always use caution when handling the clips to prevent damage, and take all essential safety measures to keep yourself safe. Cheers to wrenching!
